Toyota Prius: Driving support system information display

The driving support system information display in the 2024 Toyota Prius provides crucial details about various driving assistance features and systems. This display informs drivers about the status and operation of technologies such as adaptive cruise control, lane departure warning, forward collision warning, and automatic emergency braking. It serves to enhance driver awareness and safety by providing real-time updates and alerts related to these advanced driving aids, ensuring a confident and informed driving experience in diverse road conditions.

Select to display the operational status of the following systems:

• LTA (Lane Tracing Assist)
•  LCA (Lane Change Assist) (if equipped)
•  LDA (Lane Departure Alert)
•  PDA (Proactive driving assist)
• Dynamic radar cruise control
• Cruise Control

Navigation system-linked display (if equipped)

Select to display the following navigation system-linked information.

• Route guidance to destination
• Compass

Audio system-linked display

Select to enable selection of an audio source or track on the display.

Vehicle information display

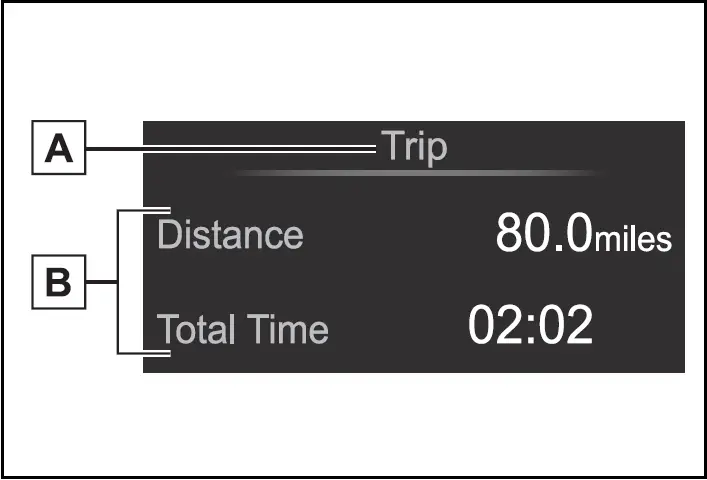

Drive information

Displays drive information such as the following:

1. Drive information type
2. Drive information items

Displays the following depending on which drive information type and drive information items were selected in

• After start

• Distance: Displays the distance driven since hybrid system start
• Elapsed time: Displays the elapsed time since hybrid system start
•  Average vehicle speed: Displays the average vehicle speed since hybrid system start

• After reset
• Distance: Displays the distance driven since the display was reset*
• Elapsed time: Displays the elapsed time since the display was reset*
• Average vehicle speed: Displays the average vehicle speed since the display was reset*

*: To reset, display the desired item and press and hold the meter control switch.

Energy monitor

Tire pressure

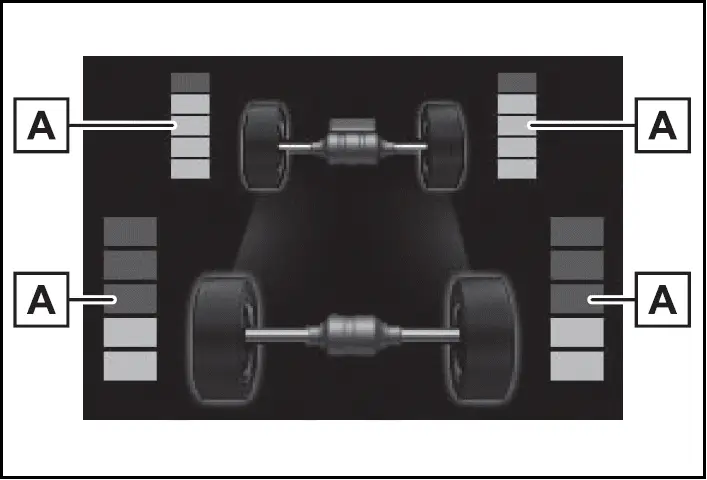

AWD system display (AWD models)

1. Torque distribution display

The AWD system display in AWD models of the 2024 Toyota Prius shows the drive status of each wheel using a 6-step indicator, ranging from 0 to 5. This display provides visual feedback on the power distribution and traction status of each wheel, allowing drivers to monitor how power is being distributed across the vehicle's AWD system. It's important to note that the illustration provided is an example and may differ from the actual image displayed on the multi-information display, depending on the specific configuration and settings of the AWD system in use. This feature helps drivers stay informed about the performance of their Prius' AWD capabilities in various driving conditions.
