Toyota Prius: Electronic key battery

If the battery in your Toyota Prius 2024 is depleted, ensure to replace it with a new one to maintain optimal performance and functionality of your vehicle's electronic systems.

If the electronic key battery is depleted

The following symptoms may occur:

• The smart key system and wireless remote control will not function properly.
• The operational range will be reduced.

Items to prepare

Prepare the following before replacing the battery:

• Flathead screwdriver
• Small flathead screwdriver
• Lithium battery CR2450

Use a CR2450 lithium battery

• Batteries can be purchased at your Toyota dealer, local electrical appliance shops or camera stores.
• Replace only with the same or equivalent type recommended by the manufacturer.
• Dispose of used batteries according to the local laws.

Replacing the key battery (Prius 2024-2025)

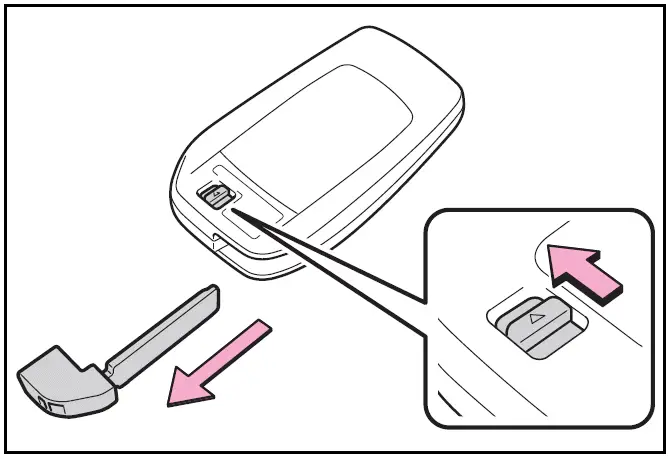

1. Release the lock and remove the mechanical key.

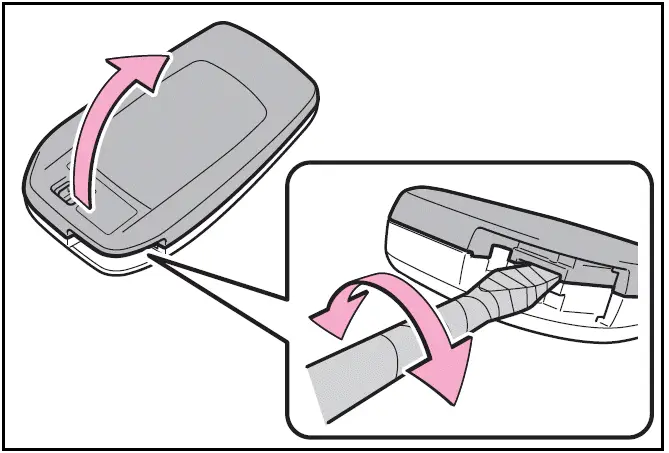

2. Remove the key cover.

To prevent damage to the key, cover the tip of the flathead screwdriver with a rag.

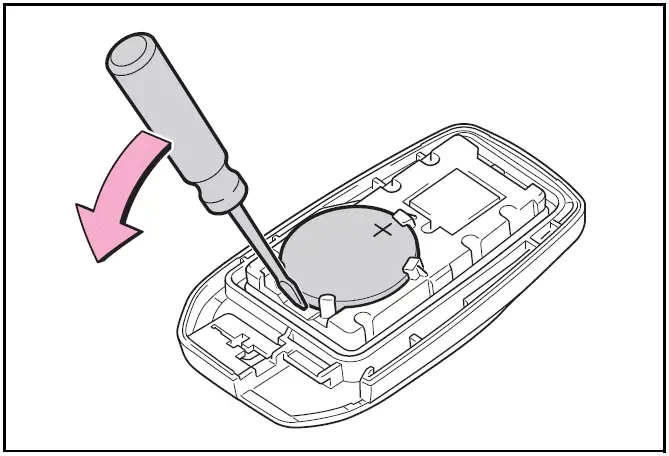

3. Remove the depleted battery using a small flathead screwdriver.

When removing the cover, the electronic key module may stick to the cover and the battery may not be visible. In this case, remove the electronic key module in order to remove the battery.

When removing the battery, use a screwdriver of an appropriate size.

Insert a new battery with the "+" terminal facing up.

4. When installing, reverse the steps listed.

WARNING

Battery precautions

Observe the following precautions.

Failure to do so may result in death or serious injury.

• Do not swallow the battery.

  Doing so may cause chemical burns.

• A coin battery or button battery is used in the electronic key. If a battery is swallowed, it may cause severe chemical burns in as little as 2 hours and may result in death or serious injury.
• Keep away new and removed batteries from children.
• If the cover cannot be firmly closed, stop using the electronic key and stow the key in the place where children cannot reach, and then contact your Toyota dealer.
• If you accidentally swallow a battery or put a battery into a part of your body, get emergency medical attention immediately.

To prevent battery explosion or leakage of flammable liquid or gas

• Replace the battery with a new battery of the same type. If a wrong type of battery is used, it may explode.
• Do not expose batteries to extremely low pressure due to high altitude or extremely high temperatures.
• Do not burn, break or cut a battery.

NOTICE

When replacing the battery

Use a flathead screwdriver of appropriate size. Applying excessive force may deform or damage the cover.

For normal operation after replacing the battery

Observe the following precautions to prevent accidents:

• Always work with dry hands.

  Moisture may cause the battery to rust.

• Do not touch or move any other component inside the remote control.
• Do not bend either of the battery terminals.
