Toyota Prius: Air conditioning filter

For optimal air conditioning efficiency in your Toyota Prius, it is crucial to change the air conditioning filter regularly.

Air conditioning filter Removal

1. Turn the power switch off.

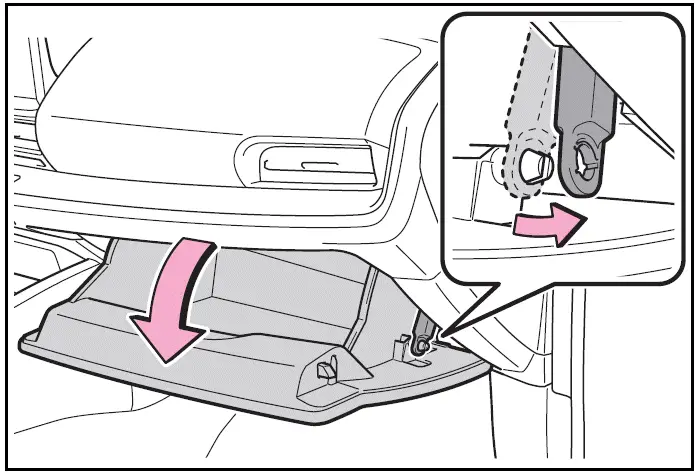

2. Open the glove box and slide off the damper.

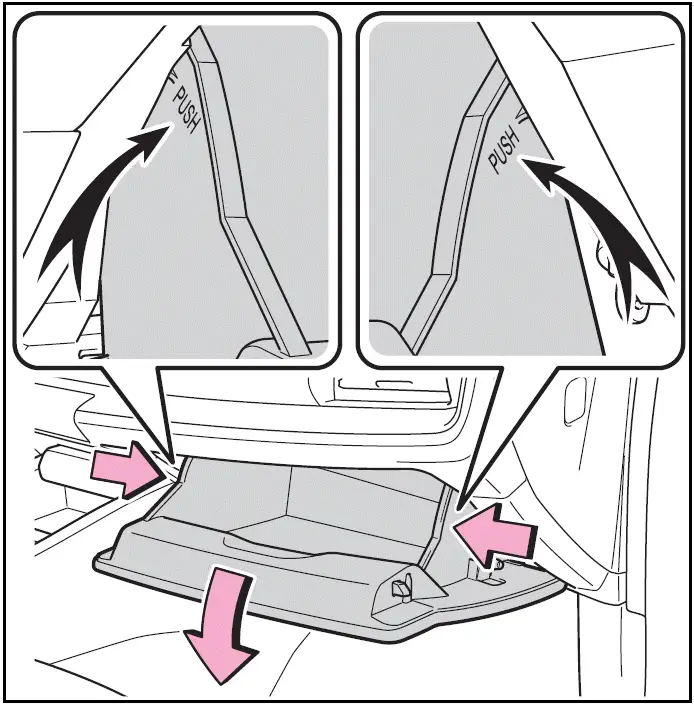

3. Push in each side of the glove box to disconnect the claws, and then slowly and fully open the glove box while supporting it.

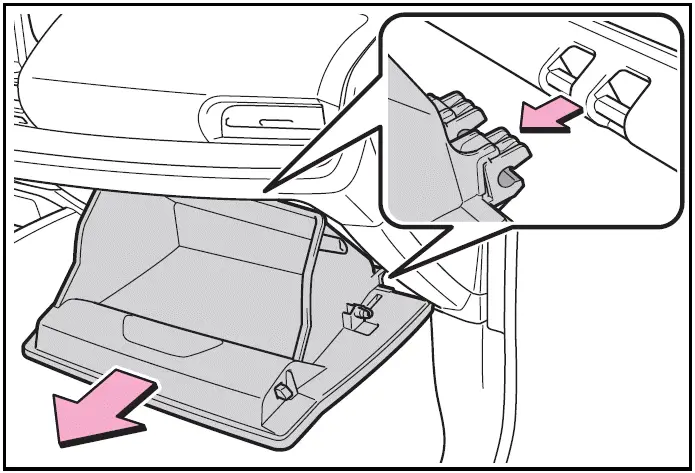

4. With the glove box fully open, slightly lift up the glove box and pull toward the seat to detach the bottom of the glove box.

Do not use excessive force if the glove box does not detach when lightly pulled. Instead, pull toward the seat while slightly adjusting the height of the glove box.

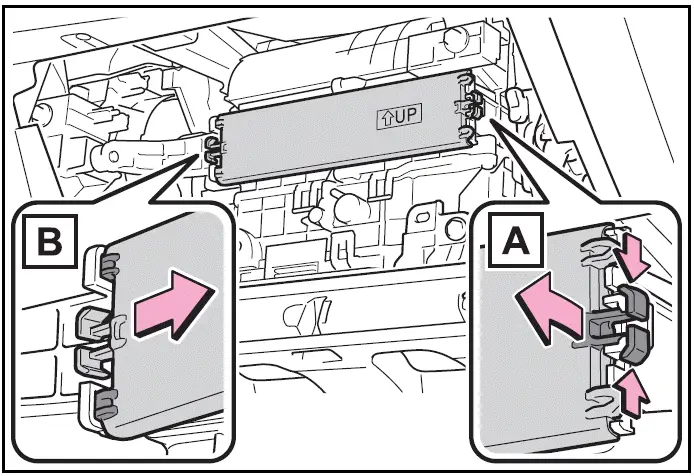

5. Unlock the filter cover ( ), pull the filter cover out of the claws (), and remove the filter cover.

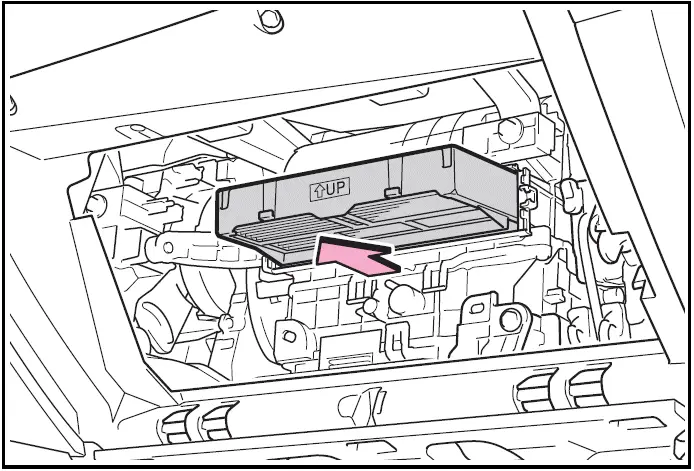

6. Remove the filter case.

7. Remove the air conditioning filter from the filter case and replace it with a new one.

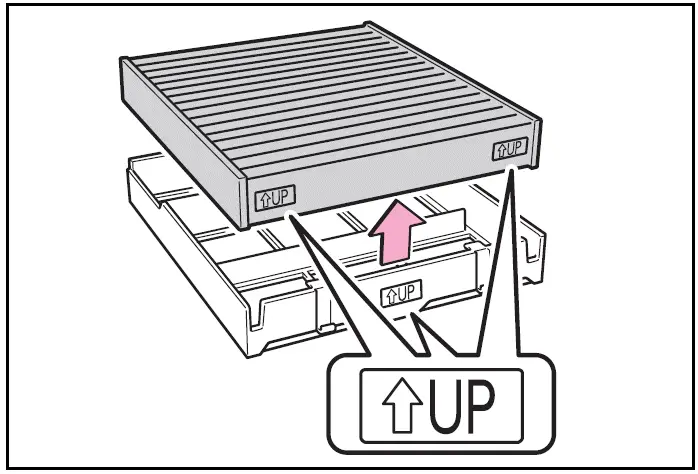

The " UP" marks shown on the filter should be pointing up.

8. When installing, reverse the steps listed.

Checking interval

Inspect and replace the air conditioning filter according to the maintenance schedule. In dusty areas or areas with heavy traffic flow, early replacement may be required. (For scheduled maintenance information, please refer to the "Owner's Manual Supplement" or "Scheduled Maintenance".)

If air flow from the vents decreases dramatically

The filter may be clogged. Check the filter and replace if necessary.

NOTICE

When using the air conditioning system

Make sure that a filter is always installed. Using the air conditioning system without a filter may cause damage to the system.

When removing the glove box

Always follow the specified procedure to remove the glove box . If the glove box is removed without following the specified procedure, the hinge of the glove box may become damaged.

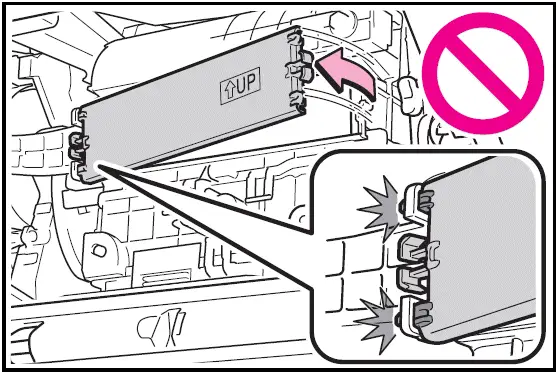

To prevent damage to the filter cover

When moving the filter cover in the direction of arrow to release the fitting, pay attention not to apply excessive force to the claws. Otherwise, the claws may be damaged.
